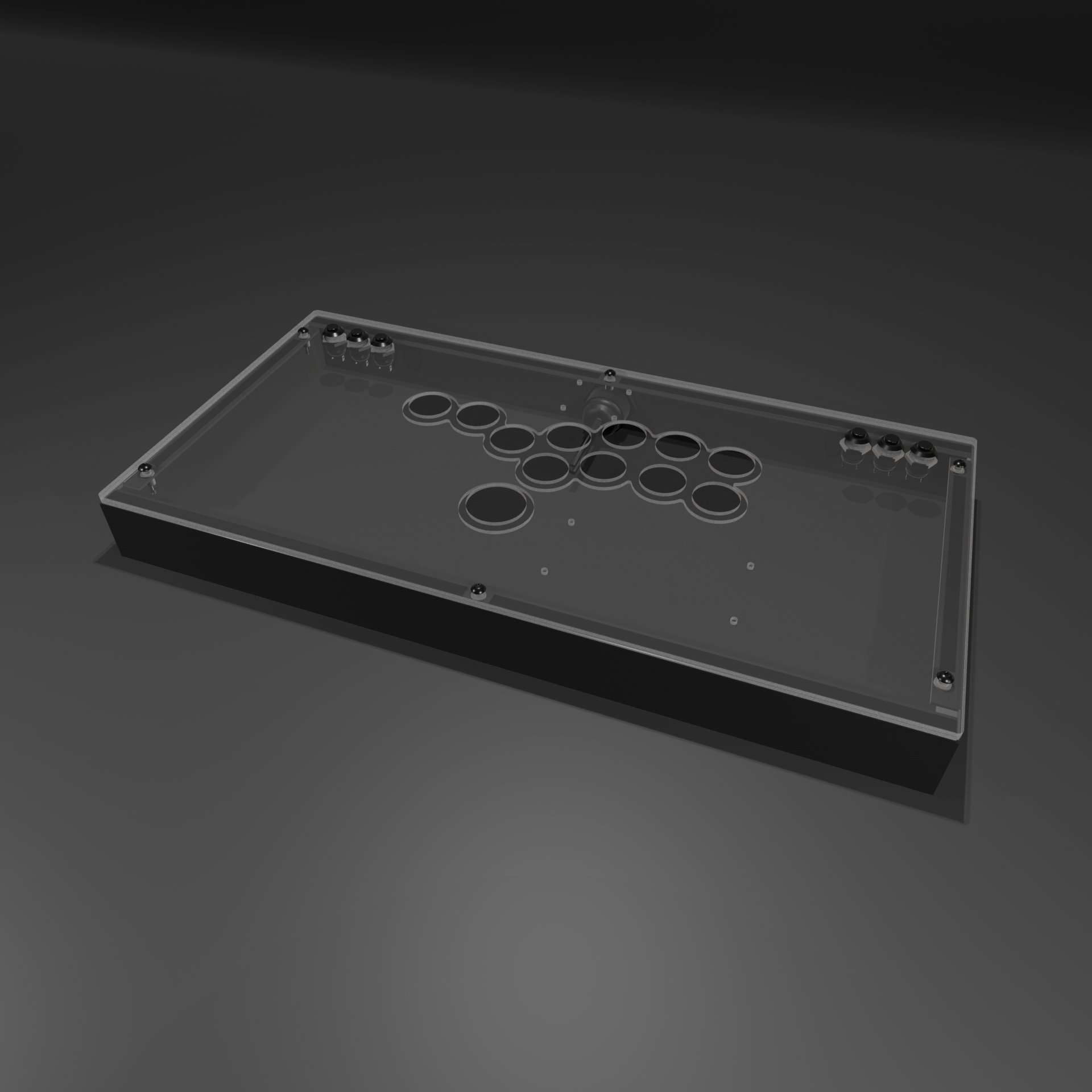

ASP 16" Gen2 Slim (1.75") DIY Metal Enclosure
Our second-generation DIY metal enclosure is finally here. Slim, rigid, and durable, this enclosure is designed to house the components of your arcade stick or leverless controller. Made of 2mm thick aluminum that has been laser-cut, bent, sandblasted, and finished in our signature wrinkle black powder coat. Whether you're a seasoned builder or a total newcomer, this DIY enclosure is an excellent starting point. Slim enough for travel, yet spacious enough to accommodate most full-size Japanese-style arcade components. Just add your own joystick, buttons, PCB, and wiring.

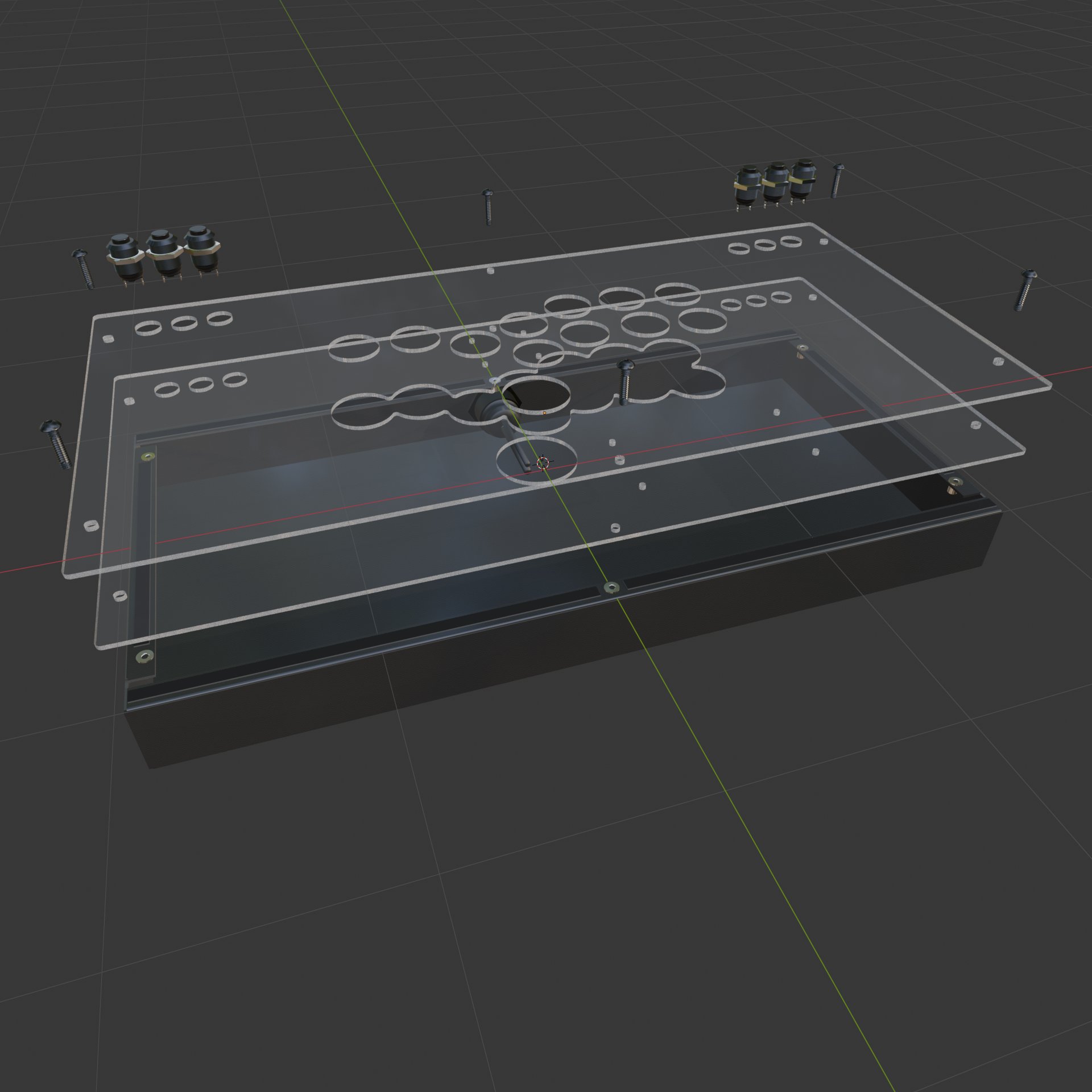

Package Includes: Metal Enclosure Base with USB-C Port, Two Piece Acrylic Control Panel with Custom Artwork Support, Six Piece Aux/Menu Button Set and Control Panel Mount Screws.
Dimensions: 16" x 8" x 1.75" (406.4mm x 203.2mm x 44.45mm)
Weight: 3 lbs (1.360kg)
Control Panel: 2 Piece ⅛” (3mm) Clear Acrylic
*Acrylic parts are shipped with a protective film on both sides to prevent scratches during transit. Please peel and remove during assembly.
Button Compatibility: Most 24mm and 30mm Japanese style/size arcade buttons are compatible.
Joystick Compatibility: Sanwa JLF style/size joysticks with flat mount plates are compatible.
* Do note that joysticks will sit 3mm higher than usual when mounting in this slim enclosure.
PCB Compatibility: Includes M3 threaded mounting holes for RP2040 Advanced Breakout Board and 1.3" OLED Display Module. Brook Fighting Boards are also compatible with these mounting holes.
